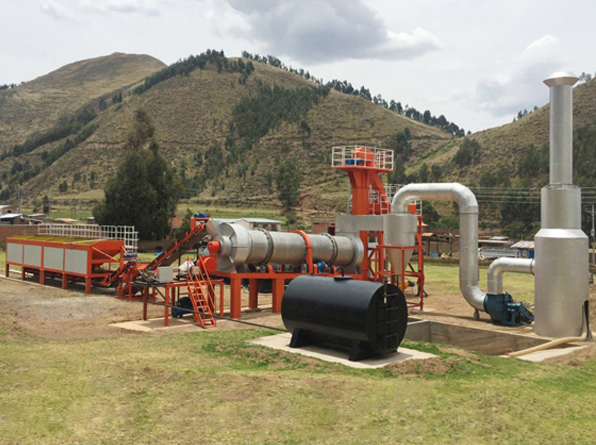

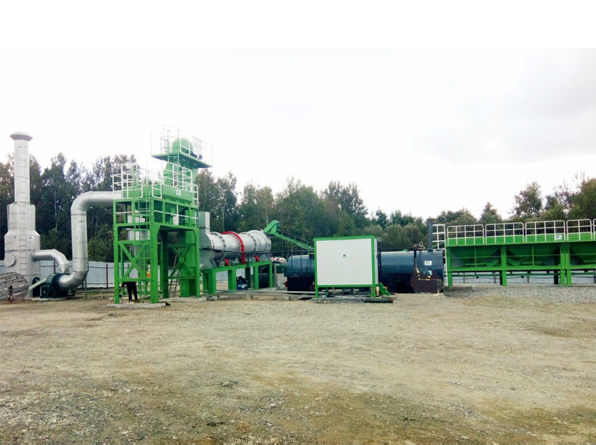

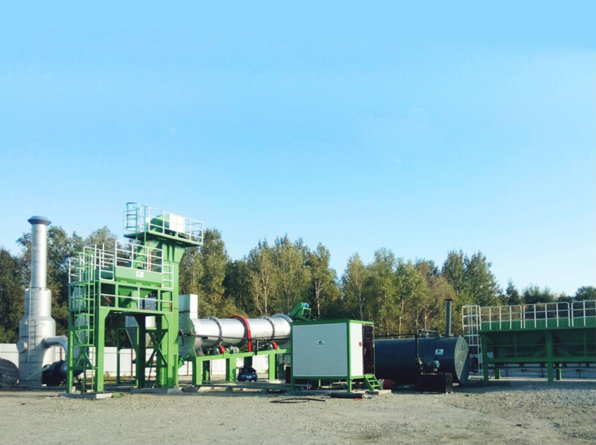

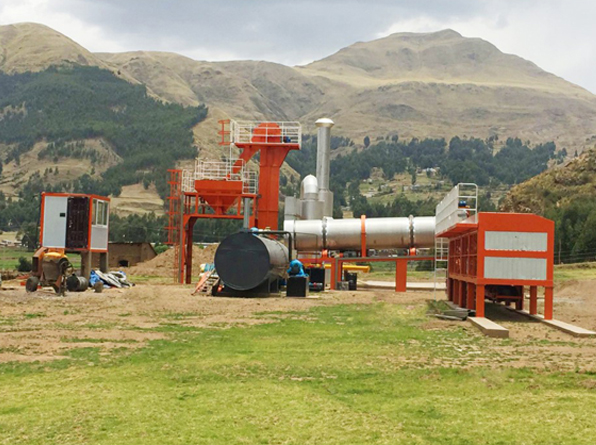

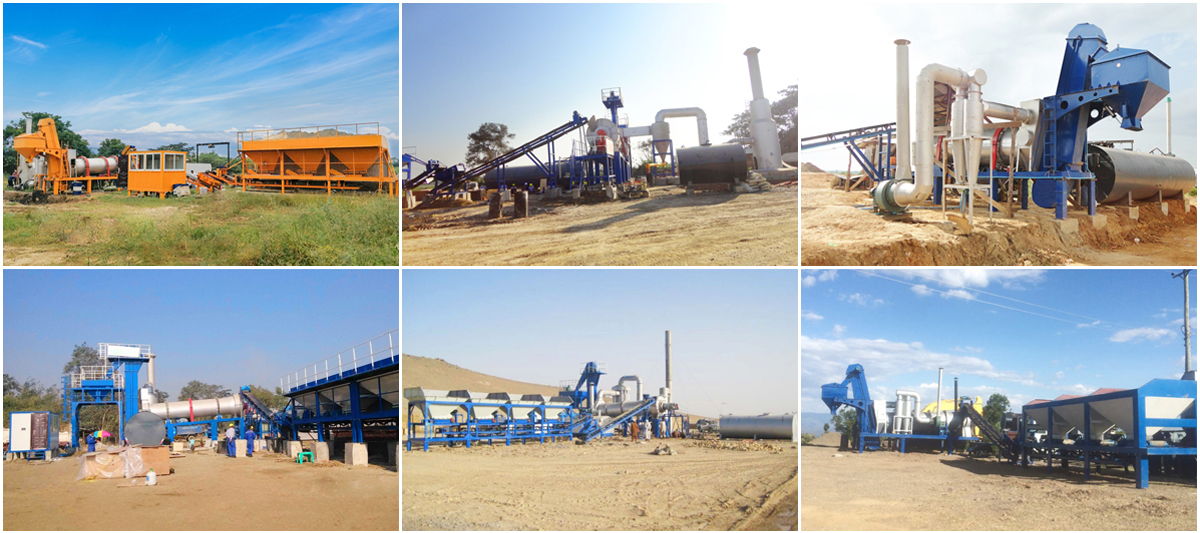

Asphalt Drum Mixing Plant

DHB Series and MDHB Series (mobile) are drum mixing asphalt plant
Drying drum has functions of drying and mixing
Their output is 20 ~ 100tph
Fitting for small and medium-sized road construction project

Get A Price Now! Chat Online Product Video

Description Parameter Related Products Get In Touch

Description

DHB Series and MDHB Series (mobile) are drum mixing asphalt plant, drying drum has functions of drying andmixing; their output is 20 ~ 100lph, fiting for small and medium-sized road constructicn project.

Features:

Integrated structure, less land occupation;

Convenient for transportation and mobilization;MDHB series equipped with mobile chassis can be pulledby truck or vehicle;

Cold aggregate equips with weight sensor and variable frequency motor, aggregate feeding rate is remotecontrolled; precise aggregate feeding;

Drying drum have functions of drying, heating and mixing, low heat loss; optimized inner structure, fastheating and well mixing;

Low initial investment, highly cost-effective.

Parameter

Model	Capacity(t/h)	Weighing Accuracy		Total Power(KW)	Fuel Consumption(kg/t)
Model	Capacity(t/h)	Aggregate	Bitumen	Total Power(KW)	Coal	Oil
MDHB/DHB-20	20	±1.5%	±1%	40	10	5.5-7
MDHB/DHB-40	40	±1.5%	±1%	75	10-13	5.5-7
MDHB/DHB-60	60	±1.5%	±1%	128	10-13	5.5-7
MDHB/DHB-80	80	±1.5%	±1%	165	Φ1800x8000	5.5-7
MDHB/DHB-100	100	±1.5%	±1%	200	10-13	5.5-7
