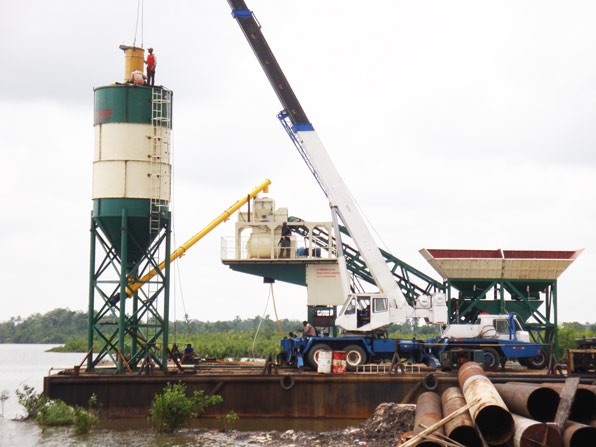

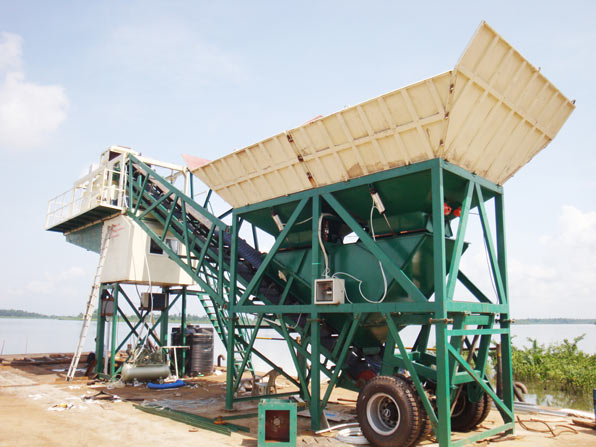

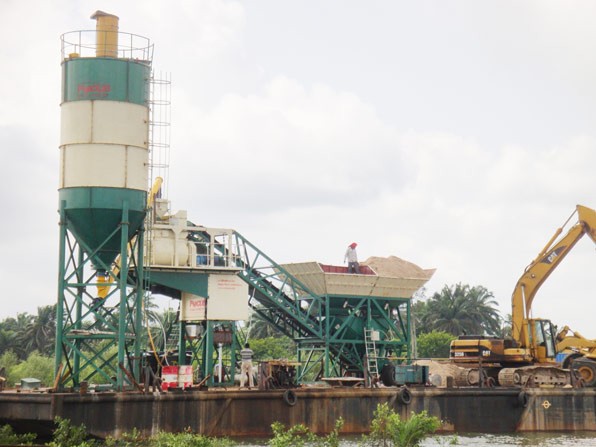

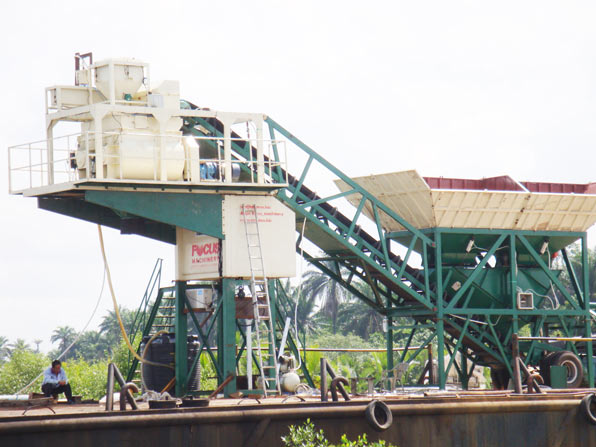

YHZS60 Mobile Concrete Batching Plant
PLC brand: SIMENS/OMRON
Electrical components: Relays, contactors, etc. SCHNEIDER make
Control console: Buttons, lamps, indicators, etc.
Air conditioner: 1 unit, GELI brand
Printer: 1 unit, EPSON or equivalent
Computer with control software: 1 unit
Description
YHZS60 Mobile Concrete Batching Plant:
With JS1000 double-shaft compulsory type concrete mixer, FOCUS YHZS60 mobile plant is our mid-sized mobile plant(60m3 output capacity per hour) boasting excellent features as follows:
01
Italian Technique Control system
Industrial computer with friendly user interface centralized monitoring. Multiple languages can be chosen;
02
Italian Technique Concrete mixer
Adopting SICOMA twin-shaft concrete mixer technologies, our JS1000 mixer has very strong and durable running performance.
03
Accurate Batching
Excellent weighing sensor guarantees the precision and stability of weighing.
04
Compact structure and all ready functions
Plant of this model is a combination of storing, weighing, transporting, mixing and controlling.
05
Convenient movement
Adopting pulling type different structuring way enables convenient movement.
06
Quick installation
Ready to run without special foundation and commissioning, which can save installation and commissioning time.
07
Container-type
structure design, Fast and easy installation, elegant appearance.
Parameter
| Model | YHZS60 |
| Output capacity | 60m³/h |
| Overall power | 85kw |
| Discharge height | 3800mm |
| Max. hauling speed | 40km/h |
| warranty | 13months after commissioning |
| After-sale service | Guidance on erecting, commissioning and operator training, 24/7 technical assistance afterwards |
| Concrete mixer | JS1000 |
| Motor power | 18.5kw×2 |
| Mixing circle | 60s |
| Discharge volume | 1000L |
| Max. aggregate dia. | 80mm |
| Aggregate batcher | PLD1600 |
| Storage hopper | 2, 3 or 4 sorts |
| Weighing hopper | 1600L |
| Aggregate weighing precision | ±2% |
| Aggregate feeder | Belt conveyor |
| Cement | ±1% |
| Water | ±1% |
| Additive | ±1% |
| Control system | Auto computer control, 1 set |
| PLC brand | SIMENS/OMRON |
| Electrical components | Relays, contactors, etc. SCHNEIDER make |
| Control console | Buttons, lamps, indicators, etc. |
| Air conditioner | 1 unit, GELI brand |
| Printer | 1 unit, EPSON or equivalent |
| Computer with control software | 1 unit |
| Uninterrupted Power Supply | 1 unit |
| Pneumatic system | 1 set |
| Air-compressor | 0.6MPA |
| Triplet(oil-water separator) | 1 set with a back-up spare |
| Solenoid valve | 1 set with multiple contactor coils |
| Documentation | 1 set |
| Spare parts | included |
| Operation guide | included |
| Maintenance brochure | included |
| Electrical diagram/circuit | included |
-
