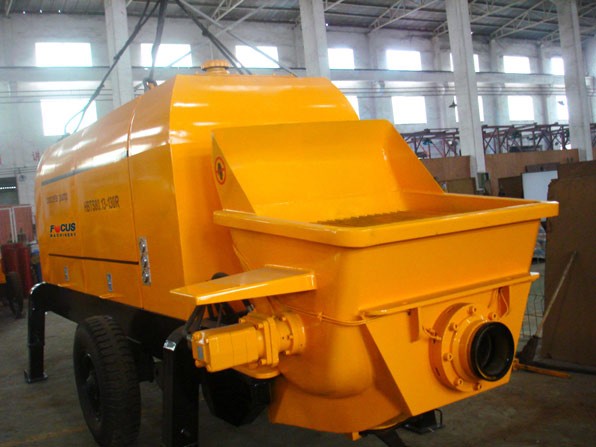

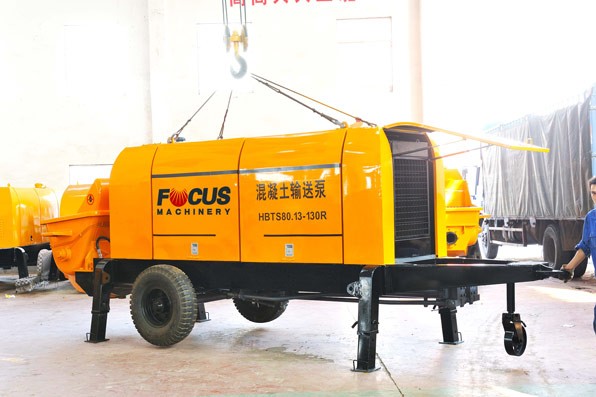

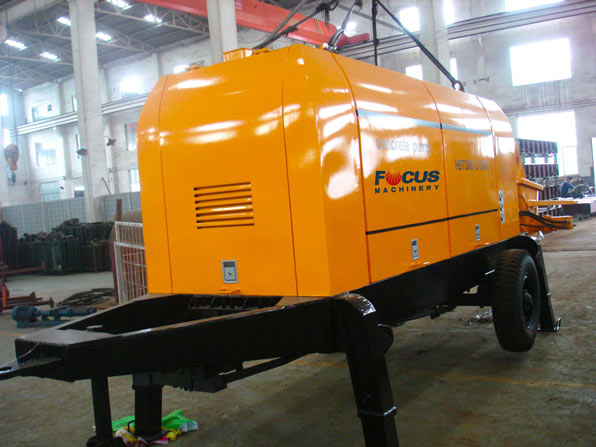

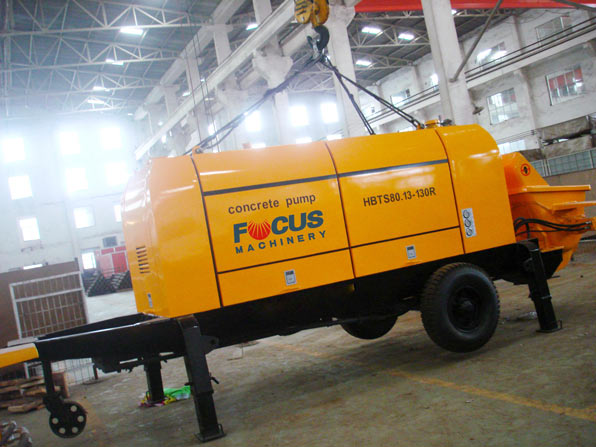

Trailer Pump With Diesel Engine

Famous brand engine guarantee strong and stable power;
German Deutz main hydraulic pumps and valves;
Open hydraulic system with tri-pump and two circuit adopted;
High-pressure delivery pipes.
Get A Price Now! Chat Online Product Video

Description Parameter Related Products Get In Touch

Description

Sizes of FOCUS Electric and Diesel Trailer mounted line pump:

JBT30 concrete pump with mixer, HBTS30 small trailer mounted line pump, HBTS40 small trailer mounted line pump, HBTS60 Electric Trailer mounted line pump, HBTS60 Diesel trailer mounted line pump, HBTS80 Electric trailer mounted line pump, HBTS80 Diesel Trailer mounted line pump.



Why would our clients choose FOCUS trailer mounted line pump?

FOCUS trailer mounted line pump is categorized into two types of engine powered: electric motor and diesel engine. Main features are as follows:

01

Open hydraulic system with tri-pump and two circuit is adopted in the concrete pump, constant power control and pressure cut-off control can promise a multistage and reliable main pump.

02

High quality hydraulic components and valves use German REXROTH.

03

The equipped leading overflow valve makes the overflow to be safer, the main pumping circuit and S valve circuit of the trailer mounted line pump are independent to each other, which makes the working system reliable and the changeover steady.e.


What are the main features of FOCUS trailer mounted concrete pump?

*Power system of trailer mounted line pump

Main hydraulic pumps are famous German REXROTH products.

Engine: German Deutz

*Electric control system of trailer mounted line pump

The reversing control of the trailer pump is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact. The main oil pump is under the famous brand of Kawasaki from Japan.

Main electric elements are imported original Schneider, OMRON, Siemens, LG, etc.

*Hydraulic system of trailer mounted line pump

The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.

*Pumping system of trailer mounted line pump

Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.

Parameter

ModelBS25-08-56RBS30-10-56RHBTSA40-10-66RHBTSB40-10-66RHBTSC40-12-82RHBTS60-12-82RHBTS80-16-129RHBTS80-13-129R
Main oil pump                Rexroth series                Rexroth series                Korea Kawasaki                Korea Kawasaki                Korea Kawasaki                Korea Kawasaki

                Korea Kawasaki

                Korea Kawasaki

Main oil pump displacement (ml/r)


71



71



112



112



112



112



112×2




112×2



Theoretical displacement (cubic) high/low



30



30



40/27



 40/30



 40/33



60/36



85/50




85/50



engine

                Delier 4100

                Delier 4100

                Delier 66

                Delier 66                Weichai Deutz 82                Deutz 82                Deutz 129                Deutz 129
Main cylinder dia./stroke (mm)


Φ80/845


Φ80/845


Φ100/1300


Φ100/1300


Φ100/1200


Φ110/1300


Φ140/1800


Φ125/1650

Concrete cylinder dia./stroke (mm)                                   Φ140/845                Φ140/845                Φ160/1300                Φ180/1300                Φ180/1200                Φ180/1300                Φ200/1800                Φ200/1650
Hydraulic hose


Manuli, Itay


Manuli, Italy


Manuli, Italy


Manuli, Italy



Manuli, Italy


Manuli, Italy


Manuli, Italy


Manuli, Italy

Seal


American Parker


American Parker


American Parker


American Parker


American Parker


American Parker


American Parker


American Parker

Electronic control system

                Schneider

                Schneider                Schneider                Schneider                Schneider                Schneider                Schneider                Schneider
PLC unit

                Japan Omron

                Japan Omron                Japan Omron                Japan Omron                Japan Omron                Japan Omron                Japan Omron                Japan Omron
remote controlremote controlremote controlremote controlremote controlremote controlremote controlremote controlremote control
High and low voltage conversion

no

noHaveHaveHaveHaveHaveHave
Valve blockBeijing HuadeBeijing HuadeBeijing HuadeBeijing HuadeBeijing HuadeBeijing HuadeBeijing HuadeBeijing Huade
Pumping distance horizontal / vertical (m)

                300/120

                400/160                600/180                600/180                600/180                600/180                1200/350                1000/280
Pressure gaugeGerman importsGerman importsGerman importsGerman importsGerman importsGerman importsGerman importsGerman imports
ButtonSchneiderSchneiderSchneiderSchneiderSchneiderSchneiderSchneiderSchneider
Lubrication systemFully automatic hydraulicFully automatic hydraulicFully automatic hydraulicFully automatic hydraulicFully automatic hydraulicFully automatic hydraulicFully automatic hydraulicFully automatic hydraulic
Outlet pipe diameter (mm)                Φ100                Φ100                Φ125                Φ150                Φ150                Φ150                Φ180                Φ180
