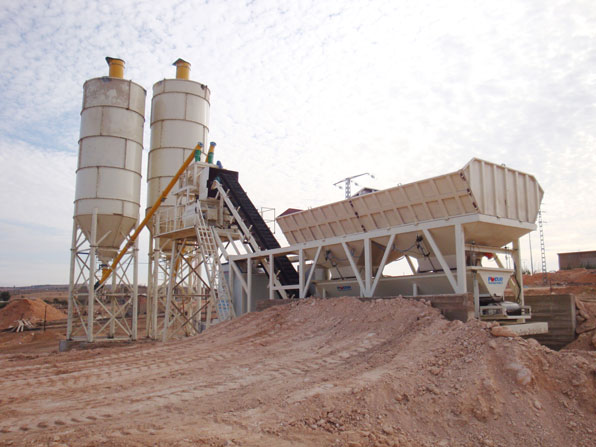

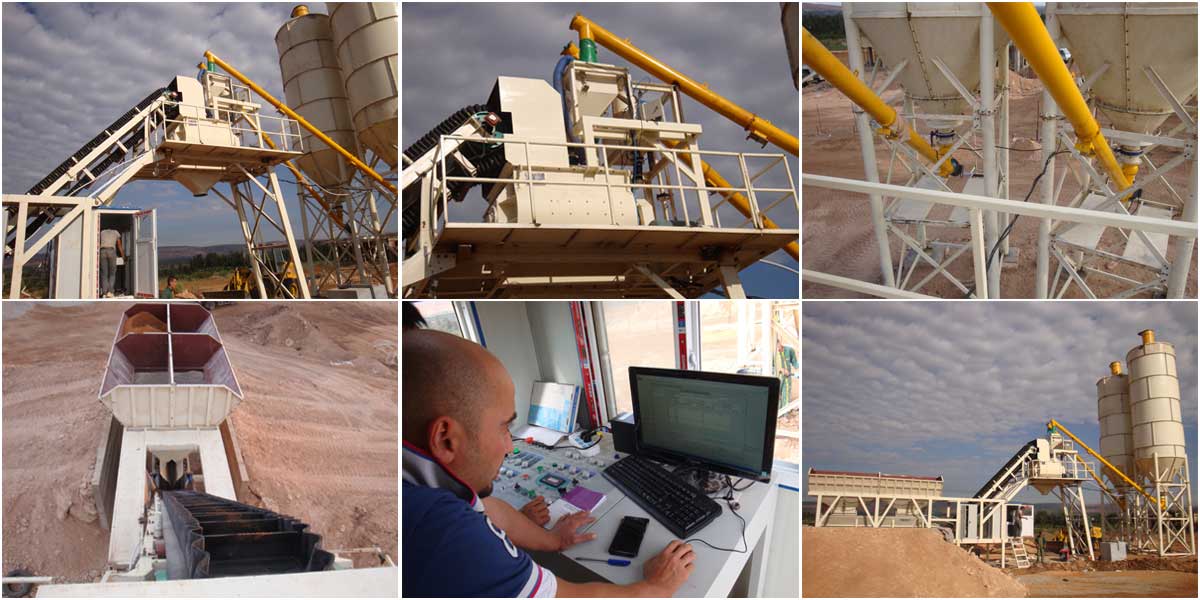

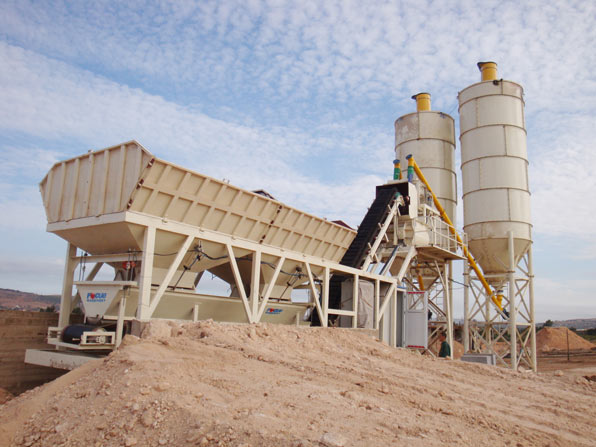

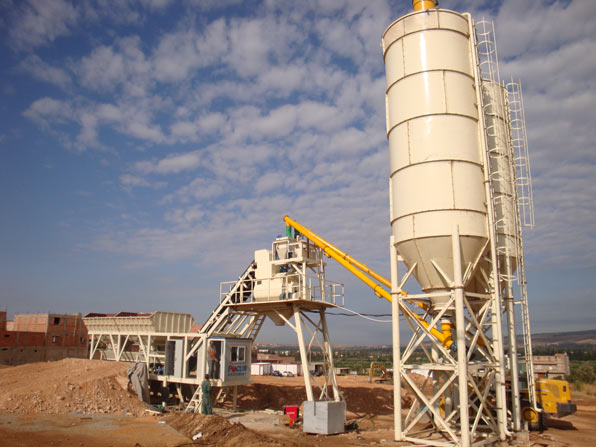

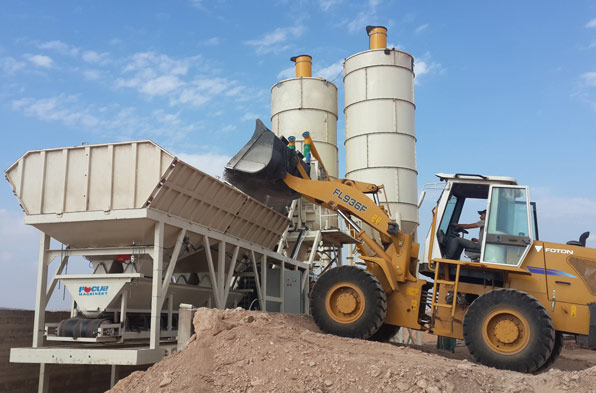

YHZS35 Mobile Concrete Batching Plant
PLC brand: SIMENS/OMRON
Electrical components: Relays, contactors, etc. SCHNEIDER make
Control console: Buttons, lamps, indicators, etc.
Air conditioner: 1 unit, GELI brand
Printer: 1 unit, EPSON or equivalent
Computer with control software: 1 unit
Description
YHZS35 mobile concrete batching plant consists of feeding system(feeding hopper), weighing system, conveying system, mixing system, discharging system and other accessories to form a complete mixing equipment.
It is a small model of mobile concrete batching plant(35m3 output capacity per hour), widely used in construction projects such as bridge, road, buildings, short distance railway, dams, etc.
Features of YHZS35 Mobile Concrete Batching Plant:
01
Quick and simple installation(1 day needed);
02
Cost-effective transportation(one truck trailer needed);
03
Can be used as foundation-free plant, no complex foundation needed;
04
Fast and easy worksite relocation;
05
Low maintenance and simple operation;
06
High production performance as equipped with our JS750 twin-shaft concrete mixer.
Parameter
| Model | YHZS35 |
| Output capacity | 35m³/h |
| Overall power | 60kw |
| Discharge height | 3800mm |
| Max. hauling speed | 40km/h |
| warranty | 13months after commissioning |
| After-sale service | Guidance on erecting, commissioning and operator training, 24/7 technical assistance afterwards |
| Concrete mixer | JS750 |
| Motor power | 30kw |
| Mixing circle | 72s |
| Discharge volume | 750L |
| Max. aggregate dia. | 80mm |
| Aggregate batcher | PLD1200 |
| Storage hopper | 2, 3 or 4 sorts |
| Weighing hopper | 1200L |
| Aggregate weighing precision | ±2% |
| Aggregate feeder | Belt conveyor |
| Cement | ±1% |
| Water | ±1% |
| Additive | ±1% |
| Control system | Auto computer control, 1 set |
| PLC brand | SIMENS/OMRON |
| Electrical components | Relays, contactors, etc. SCHNEIDER make |
| Control console | Buttons, lamps, indicators, etc. |
| Air conditioner | 1 unit, GELI brand |
| Printer | 1 unit, EPSON or equivalent |
| Computer with control software | 1 unit |
| Uninterrupted Power Supply | 1 unit |
| Pneumatic system | 1 set |
| Air-compressor | 0.6MPA |
| Triplet(oil-water separator) | 1 set with a back-up spare |
| Solenoid valve | 1 set with multiple contactor coils |
| Documentation | 1 set |
| Spare parts | included |
| Operation guide | included |
| Maintenance brochure | included |
| Electrical diagram/circuit | included |
-
