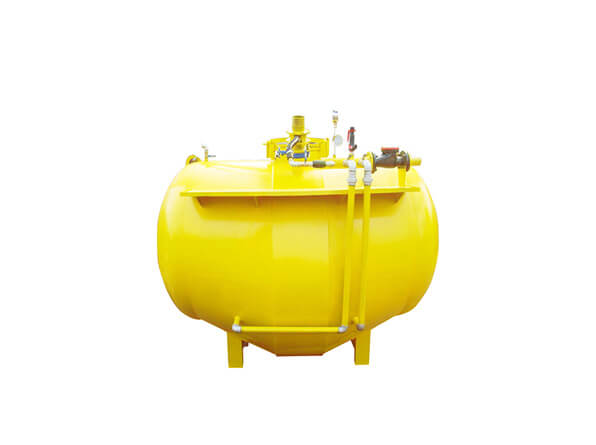

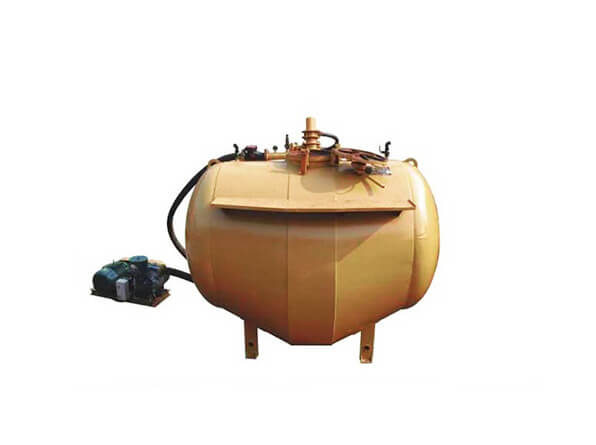

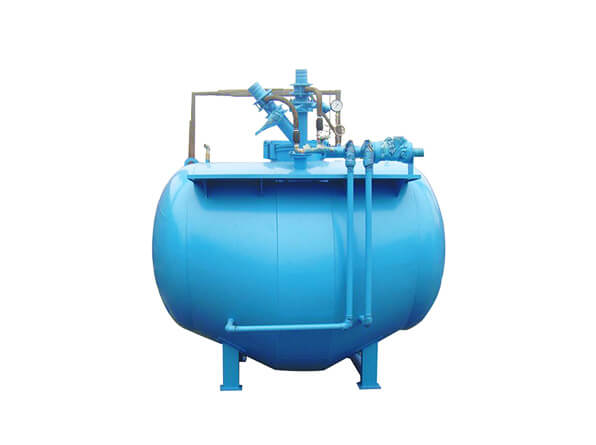

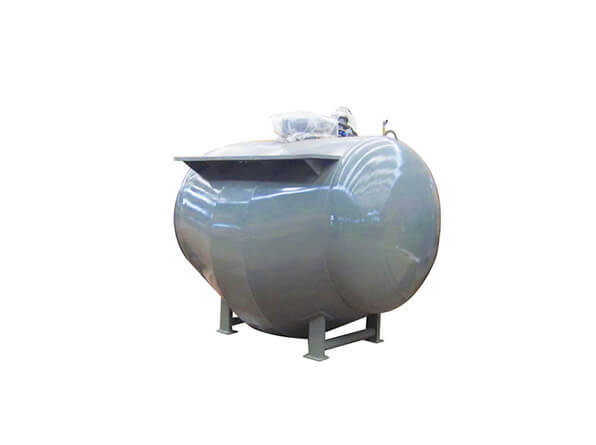

Horizontal Cement Feeder
Power: 18.5KW
Blow-off efficiency: >1.2 t/min
Remain rate: <0.4 %
Operating pressure: 0.19 mpa
Transport distance(vertical) >50 meter
Power source 380v, 50hz, 3 phase
Description
Why would clients use our pneumatic cement conveyor?
FOCUS pneumatic cement conveyor (cement horizontal feeder or cement charger) is an uniquely structured pneumatic conveying equipment, which uses fluidized pressure delivery technology. This pneumatic cement conveyor is widely applicable in remote construction sites (concrete batching plant) where bulk cement carrier(truck) is not reachable, whereas bulk cement or bag cement are much available.
What are the main features of WG series pneumatic cement conveyors?
01
It is pneumatic powder conveying equipment with advanced structure, adopting fluidized pressure delivery technology and unique fluidized bed design.
02
Applicable to transport cement, grain, coal-ash, lime powder, barite, powder resin and other non-sticky or granular materials, high blow-off efficiency.
03
The discharging point is adapted for alternating with bulk cement carrier(truck carrier), main components and spare parts are interchangeable between those two kinds of equipment in a concrete mixing plant.
04
Large capacity, high utilization, convenient installation and operation, light and compact designed, very popular in concrete batching plants for feeding powder materials (cement, fly-ash etc.) into cement silos.
Parameter
Model | WG5 | WG8 | Unit |
Tank volume | 5 | 8 | m³ |
Power | 18.5 | 18.5 | Kw |
Blow-off efficiency | >1.2 | >1.2 | t/min |
Remain rate | <0.4 | <0.4 | % |
Operating pressure | 0.19 | 0.19 | mpa |
Rated transmission capacity | 70 | 90 | Kg/h |
Transport distance(vertical) | >50 | >50 | meter |
Power source | 380v, 50hz, 3 phase | ||
Weight | 1600 | 1800 | Kg |
Overall dimension(LxWxH) | 2600x2000x2500 | 3200x2300x2630 | |
Pneumatic source (air compressor) | |||
Compressor model | WB5.4/2 | WB5.4/2 | |
Discharge capacity | 5.2 | 6 | m³/min |
Pressure rating | 0.2 | 0.2 | mpa |
Air supply weight | 500 | 500 | kg |
Air supply dimension(LxWxH) | 1300x714x916 | 1300x714x916 | mm |
Motor | Y180M-4-B3 | Y180M-4-B3 |
-
