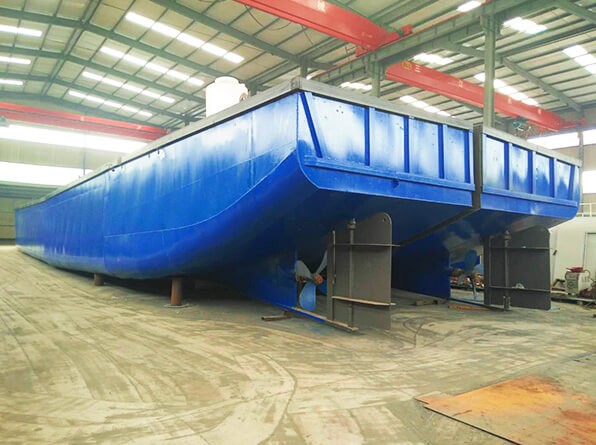

1000T Deck Barge
Total length: 55.0m
Overall length: 48.0m
Total width: 10.6m
Moulded depth: 3.6m
Full load displacement: 1700T
Load capacity: 1000T
Design full load draft depth: 3.0m
Rated deck load: 6T/㎡
| Item | Deck barge | Note | |
| Main dimensions and parameters | Total length | 55.0m | |
| Overall length | 48.0m | ||
| Total width | 10.6m | ||
| Moulded depth | 3.6m | ||
| Full load displacement | 1700T | ||
| Load capacity | 1000T | ||
| Design full load draft depth | 3.0m | ||
| Rated deck load | 6T/㎡ | ||
| Design no-load draft depth | 1.5m | ||
| Transit deck length | 7.0m | ||
| Floating body materials | baseboard | 10mm | |
| Side plate | 8mm | ||
| Deck | 10mm | ||
| Main channel | L6x60x440 | 6mm thickness steel plate is bent | |
| Rider keel | L6x75x50 | Unequal angle steel | |
| Keel spacing | 60cm | ||
| Plate material | CCSA Marine board | ||
| Propeller(2 sets) | blade diameter | 1500mm | |
| Equipped with mainframe power | Manufacturer | Weichai Marine | |
| Model | X6170ZC-05 | ||
| Power | 300kw | ||
| Rotation speed | 1000r/min | ||
| Control room | Length | 4.2m | The upper and lower layers are designed to effectively save the usable area. Wall color is white, material is steel, door window is aluminium alloy sliding type |
| Width | 3.4m | ||
| Height | 2.0m | ||
| Crew lounge | Length | 4.2m | |
| Width | 5.0m | ||
| Height | 1.8m | ||
| Driving speed | No-load | 11 sea mile/hour | |
| Full load | 9 sea mile/hour | ||
| Big anchor | 2pcs | 1000kg | |
| Marine positioning and communication systems | Ship radar | FURUNO M 1835 | 1 set |
| High frequency intercom | EHF MAINE IC-M324 | 1 set | |
| Hand-held high frequency interphone | IC-M23 | 2 sets | |
| Anchor winch: 2 sets | |||
| Total power: 660kw | |||
| Generator set: 50kw 2 sets | |||
| Steering operating system: Hydraulic transmission | |||
| Fuel consumption of equipment(full speed): about 60L/h | |||
| Total weight: about 280 ton | |||
| Production period: 60 working days | |||
